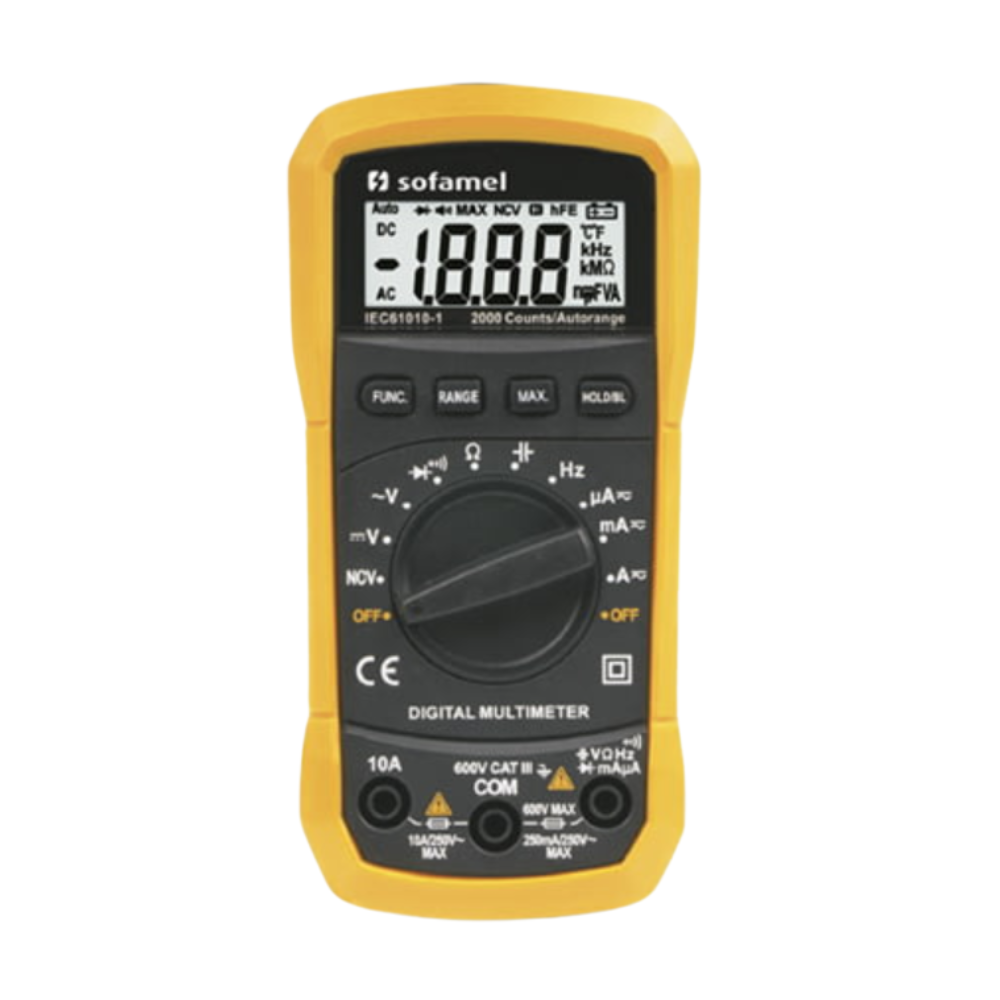

Sofamel 31009 DM-600

FEATURES

• Automatic range
• Operating voltage: 600 VDC/AC
• Resistance ranges: 20 MΩ
• Diode test
• Capacitance: 2 mF
• Current: 10 A
• NCV function
• Frequency: 20 kHz
• Display: 3 1/2 LCD
• Overload protection: PTC protection circuit is used to measure resistance and frequency
• Data storage
• Maximum measurement
• Out of range indicator: OL
• Low battery indicator:
• Auto power off: 15 minutes. Press “HOLD/BL” to activate.
• Operating conditions: 0 ~ 40 °C (32 ~ 104 °F); <80 % HR
• Storage conditions: -10 ~ 50 °C (14 ~ 122 °F); <70 % HR
• Power supply: 1 No. 9 V battery (type 6F22, 1604A)
• Safety requirements: IEC61010-1 600 V CAT III
• Dimensions: 147.5 x 74 x 42.5 mm, approx.
• Weight: 174 g approx.
